Panel Pilot Addons

Extend the capabilities of the Lascar Panel Pilot programmable TFT meter

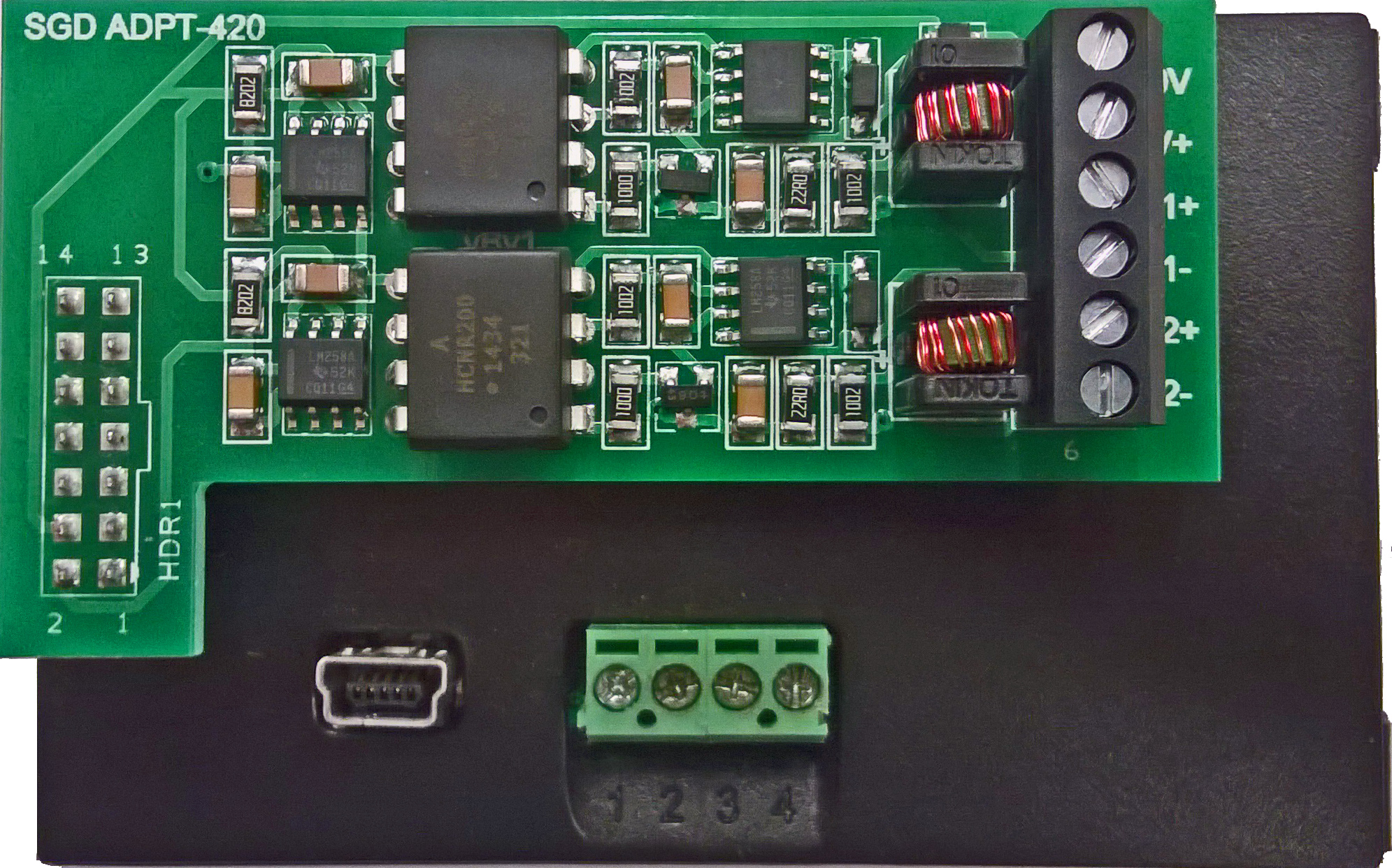

2 Channel 4-20mA Input Galvanic Isolation Module

  • Measures two isolated 4-20mA current loops
  • Simple mounting on back of Panel Pilot header
  • Works with any Panel Pilot voltage configuration
  • Each current loop channel is isolated from each other as well as the Panel Pilot
  • Powered from the SGD meter

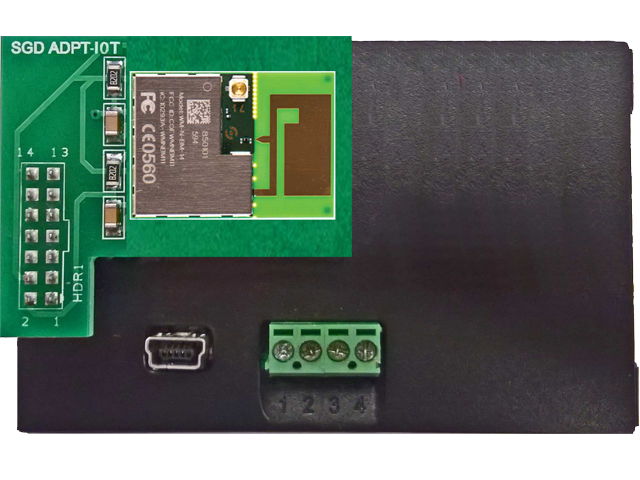

Internet of Things Module

  • Internet of Things
  • Low power consumption
  • Works with any Panel Pilot voltage configuration
  • Internet connected via WiFi
  • Powered from the SGD meter

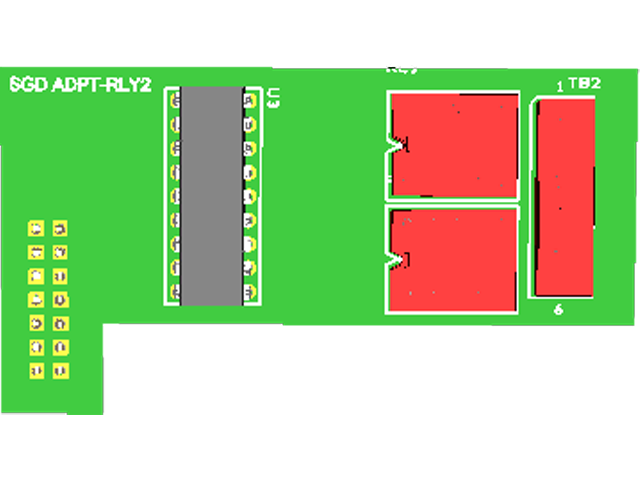

2 Channel Volt-Free Relay Output Module

  • 2x changeover relay contacts
  • Voltage rating
  • Current rating

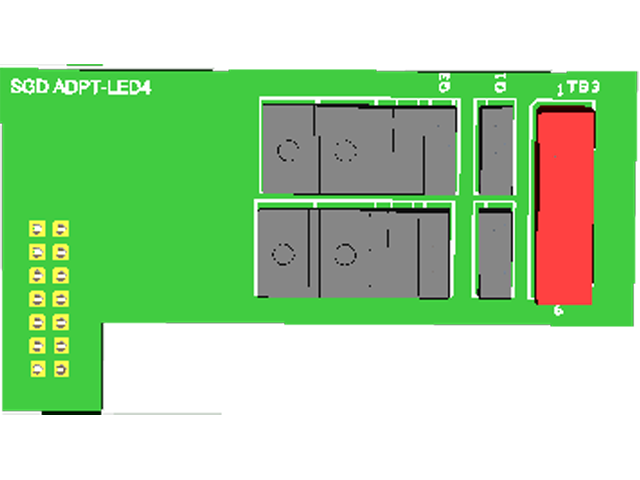

4 Channel Dimmable LED 12-24vdc Driver Module

  • Constant voltage or constant current option
  • 4 dimmable channels
  • Order code options;
  • SGD-ADPT-LED4CV constant voltage 12-24V
  • SGD-ADPT-LED4CC constant current 300-700mA

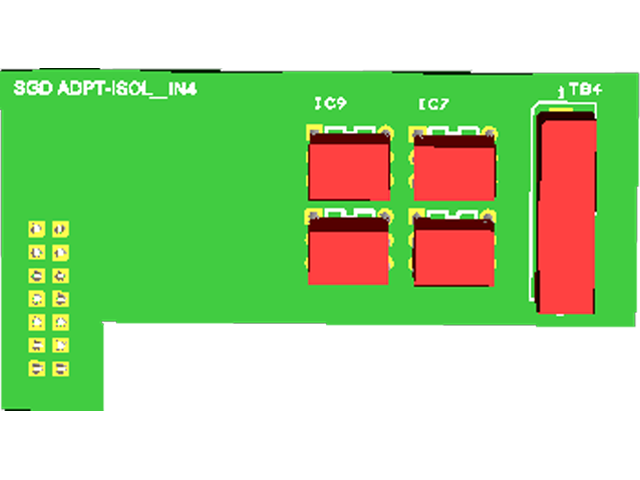

4 Channel Isolated Switched or Pulsed Input Module

  • Isolate external voltages from the Panel Pilot
  • Provide indication on the Panel Pilot without a direct connection

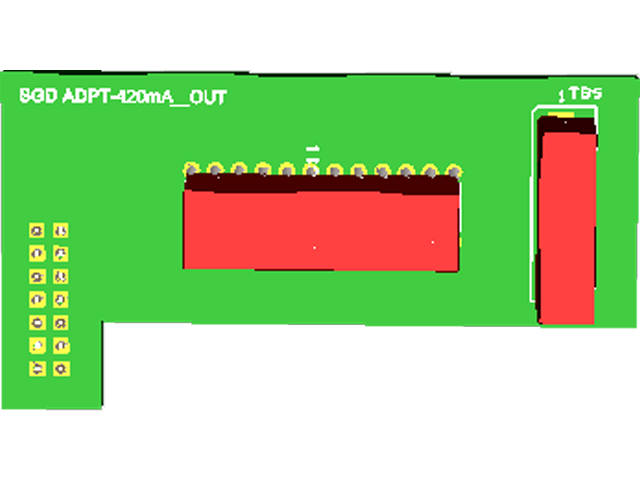

16bit 4-20mA Current Loop Output Module

  • Isolated 4-20mA current loop output
  • 16 bit resolution

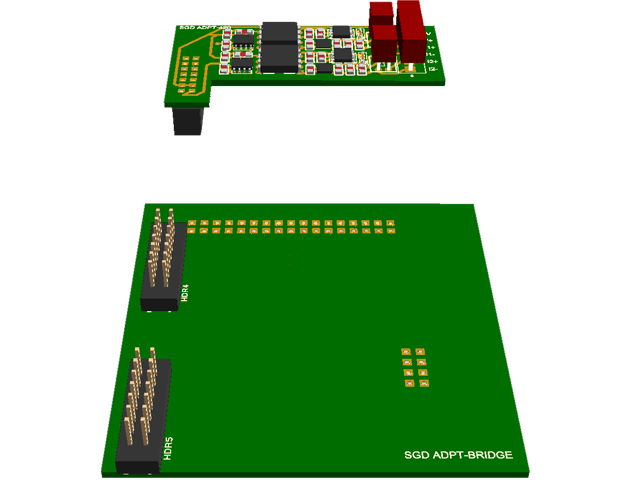

Panel Pilot Ace Bridging Module

  • Allows for up to 2 SGD ADPT modules to be fitted to a Panel Pilot Ace

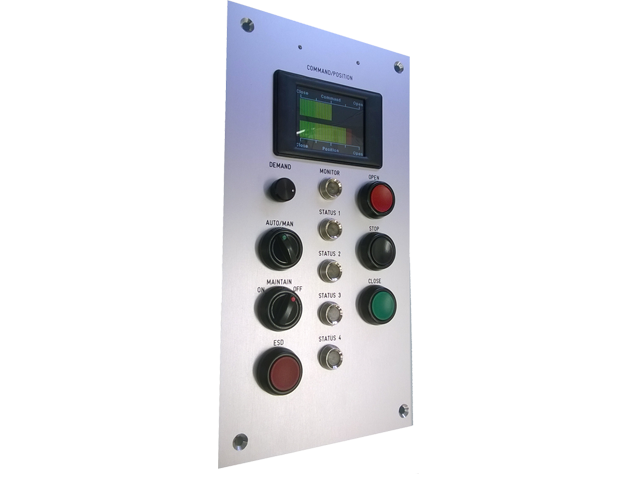

Product Design & Panel Building Service

  • From concept to manufacture
  • Add more functionality to Panel Pilots
  • Expand the usability af the Panel Pilot display
  • Workshop commissioning, site testing, customer demonstrations

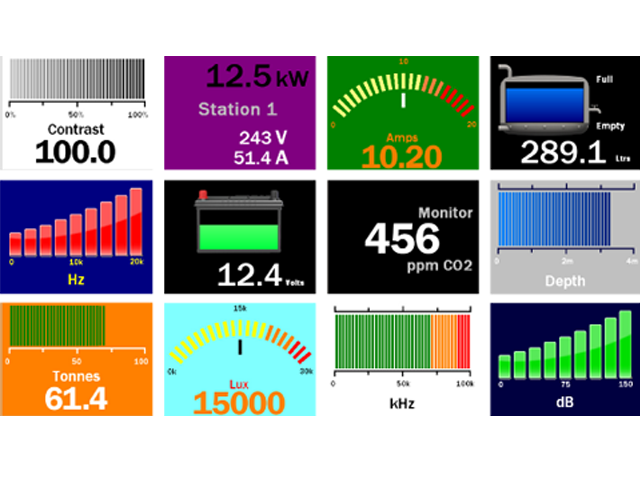

Addon Configuration Service

  • Pre-configured and tested
  • Can be supplied with a display
